Drill pipe wrench

PW100 Pipe Wrench

  • Maximum Torque: 100,000 ft. pounds
  • Maximum Tubular OD: 8"
  • More details
Tailing Arm

TA100 Tailing Arm

  • Maximum Reach: 15'
  • Remote Control: Class 1 Div 2 (Zone 2)
  • More details

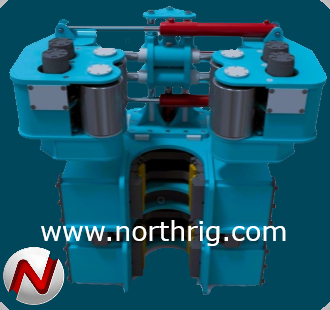

PW100 Hydraulic Drill Pipe Wrench

The Iron Roughneck market has a lot of product available, however we chose to make a new design to fill a gap in this market. A compact high torque design with the ability to give true torque feed back in real time. By removing frictional resistance while making the connection the actual applied torque can be calculated from the hydraulic pressure. This product is designed to work well as a third party piece in a complete system or a stand alone wrench on a drilling rig. With multiple mounting configurations and the ability to support full torque through the mounting frame not just internal to the wrench.

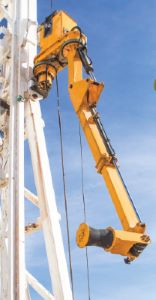

TA100 Tailing Arm

Designed to improve safety and increase productivity, the Tailing Arm is an electric over hydraulic pipe handling assist arm. With a 15’ reach and variable mounting heights, the Arm can be integrated into almost every existing rig design.
Controlled by a Class 1 Div. 2 Wireless Remote for single operator interface, personal can gain improved sightlines while keeping a safe distance.
