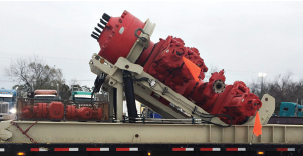

BH100 BOP Handler

  • This equipment enables a Blow Out Preventor stack to be lifted from the lowered transport position to the vertical position.
BOP Handlers

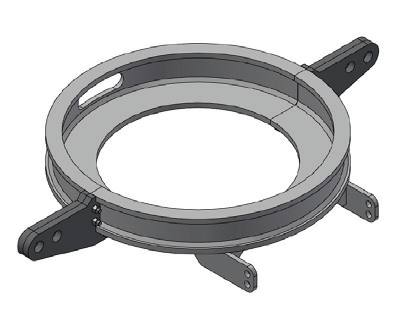

BLP100 BOP Lift Plates

  • The BOP Lift Plates are designed to balance the load during B.O.P. stack installation. The Lift plate designs are compatible with most commonly used annular components.
  • More details

BLP100 BOP Lift Plates

Five different capacities are available, as specified in the following table:
Cap.BOP AnnularLifting CentresWeight
20K lbs9" x 3K4" - 5"850 lbs (386kg)
25K lbs9" or 11" x 3K4" - 5"400 lbs (181 kg)
35K lbs11" x 5K or 10K4" - 6"1,200 lbs (544 kg)
50K lbs11" or 13-5/8"5" - 6"2,000 lbs (907 kg)
100K lbs16-5/8" or 20"5" - 6"2,500 lbs (1,134 kg)
