C14 Service Rig Catwalk

C14

  • Height Range: 6' to 34'
  • Maximum Tubular Weight: 6,000lbs
  • More details
C16 drilling rig catwalk

C16

  • Height Range: 12' to 17'
  • Maximum Tubular Weight: 7,000lbs
  • More details
C22 Drilling Rig Catwalk

C22

  • Height Range: 18' to 26'
  • Maximum Tubular Weight: 10,000lbs
  • More details
C26 drilling rig catwalk

C26

  • Height Range: 25' to 31'
  • Maximum Tubular Weight: 10,000lbs
  • More details
C28 Drilling Rig Catwalk

C28

  • Height Range: 6' to 33'
  • Maximum Tubular Weight: 10,000lbs
  • More details
C40 drilling rig pipe handler

C40

  • Height Range: 6' to 42'
  • Maximum Tubular Weight: 10,000lbs
  • More details
C60 doubles handling catwalk

C60

  • Height Range: 6' to 26'
  • Maximum Tubular Weight: 10,000lbs
  • More details
C80 triple handling catwalk

C80

  • Height Range: 6' to 42'
  • Maximum Tubular Weight: 10,000lbs
  • More details

C14

The C14 hydraulic catwalk is designed to be versatile height catwalk.
The C14 offers wireless remote controls and electric driven hydraulic power unit.
The C14 has a hydraulically extendable carrier for presentation heights from 6' to 36'


Hydraulic Catwalk

Technical Specifications
Feature Specification
Working Floor Height Range 6' to 34'
Maximum Tubular Length Range III
Maximum Tubular OD 20"
Maximum Tubular Weight 6,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 40,000 lbs
Length 54'
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 30 seconds

Design Features
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically extendable carrier
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode
Safety Features
  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors

C16

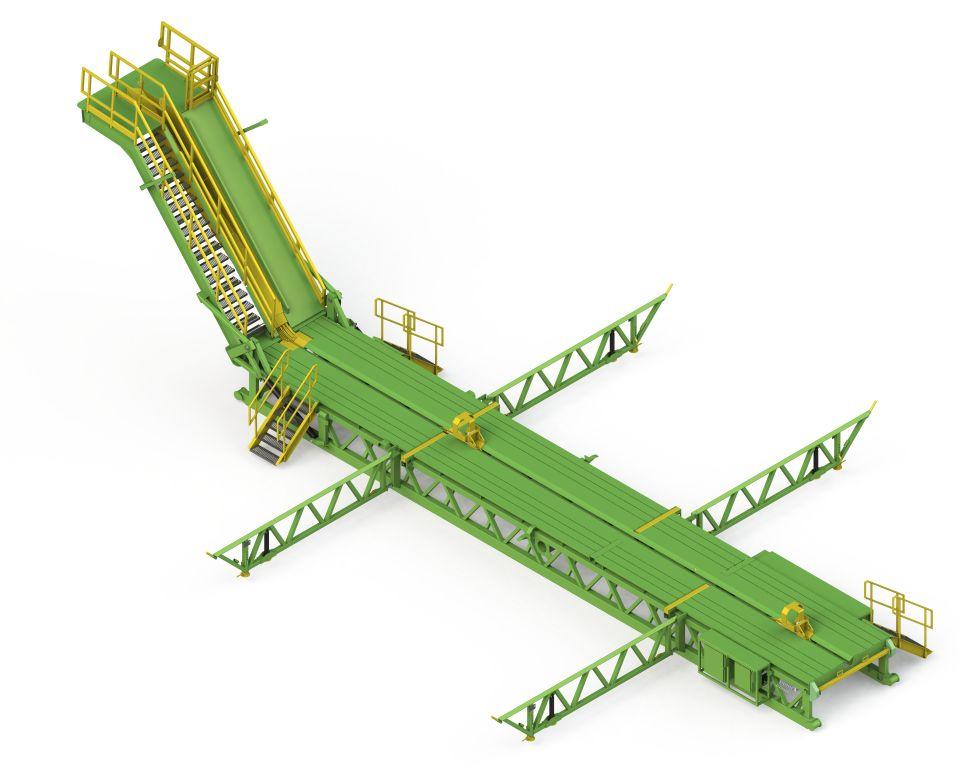

North Rig's C16 Hydraulic Catwalk is aimed at a substructure height of 16', but can be supplied with a V-door at heights from 12' to 17'.
One pipe rack will support Range 3 casing and one will support Range 2 tubular.


Significant Design Advantages
  • Open Belly Design for skidding over wellheads on a pad rig.
  • Hands free operation.
Hydraulic Catwalk

Technical Specifications
Feature Specification
Sub-floor Height Range 12' to 17' *
Maximum Tubular Length Range III
Maximum Tubular OD 20"
Maximum Tubular Weight 7,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 44,000 lbs
V-door Angle 45 degrees
Length 58'
Deck Height 46"
Tunnel Clearance 36" wide x 30" high
Cycle Time 20 seconds

* V-door supplied matches sub-floor height with a minimum of 4" of adjustability up and down.

Design Features
  • Open Belly Design for skidding over wellheads on a pad rig
  • Skate style design
  • Wireless Remote Control
  • Manual back-up system minimizes downtime
  • Rapid set-up and tear-down
  • Hydraulically leveled pipe racks
  • Hydraulic leveling of the catwalk
  • Automatic hydraulic cable tensioner
  • Tubular loading from either side of catwalk
  • Hydraulic V-Door minimizes need for lifting equipment, maximizing speed and safety
  • Self contained Power Pack with electric motor and hydraulic pump combination
Safety Features
  • Fully mechanized process eliminates manual handling of tubular.
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Channel iron deck with non-skid working surface
  • Effective moisture draining contruction
  • Hydraulic failsafe regulators
  • Protective guards on hydraulics
Optional Features
  • De-gasser line, choke line and steam lines under the deck
  • Insulation of above lines
  • Cold Temperature Package ? rated for -40°C
  • Hot Temperature Package ? rated for +40°C
  • Wheel sets
  • Walking system
  • Platform V-door
  • Manifold shack (belly becomes closed)

C22

North Rig's C22 Hydraulic Catwalk has an adjustable V-door height to meet a substructure between 18' and 26'.
The C22 offers wireless remote controls and electric driven hydraulic power unit.
The C22 has a selectable lift up carrier angle for optimal tubular presentation to the working floor.

C22 Hydraulic Catwalk

Technical Specifications
Feature Specification
Sub-floor Height Range 18' to 26'
Maximum Tubular Length Range III
Maximum Tubular OD 20"
Maximum Tubular Weight 10,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 58,500 lbs
Length 58'
Deck Height 46"
Tunnel Clearance 36" wide x 29" high
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 42 seconds

Design Features
  • Open Belly Design for skidding over wellheads on a pad rig
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically controlled carrier angle
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode
Safety Features
  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors
Optional Features
  • Cold climate upgrade, rated for -40°C

C26

North Rig's C26 Hydraulic Catwalk has an adjustable V-door height to meet a substructure between 25' and 31'.

C26 Hydraulic Catwalk and Pipe Handler

Technical Specifications
Feature Specification
Sub-floor Height Range 25' to 31'
Maximum Tubular Length Range III
Maximum Tubular OD 20"
Maximum Tubular Weight 10,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 61,500 lbs
Length 58'
Deck Height 46"
Tunnel Clearance 36" wide x 29" high
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 42 seconds

Design Features
  • Open Belly Design for skidding over wellheads on a pad rig
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically extendable carrier
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode
Safety Features
  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors
Optional Features
  • Cold climate upgrade, rated for -40°C

C28

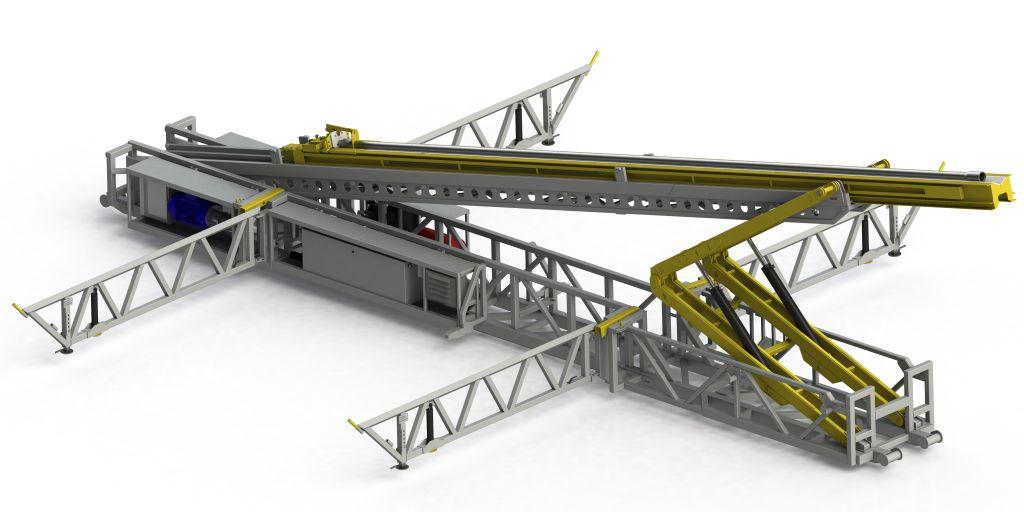

The C28 hydraulic catwalk is designed to be a versatile height catwalk.
The C28 offers wireless remote controls and electric driven hydraulic power unit.
The C28 has a hydraulically extendable carrier for presentation heights from 6' to 35'

C28 Hydraulic Catwalk

Technical Specifications
Feature Specification
Sub-floor Height Range 6' to 33'
Maximum Tubular Length Range III
Maximum Tubular OD 20"
Maximum Tubular Weight 10,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 50,000 lbs
Length 59' 8"
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 36 seconds

Design Features
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically extendable carrier
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode
Safety Features
  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors
Optional Features
  • Cold climate upgrade, rated for -40°C

C40

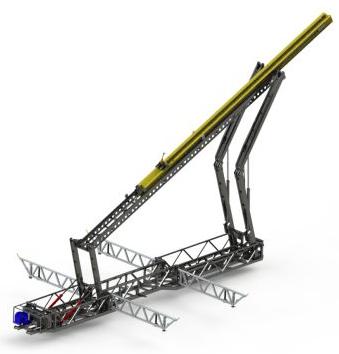

The C40 hydraulic catwalk is designed to be a versatile height catwalk.
The C40 offers wireless remote controls and electric driven hydraulic power unit.
The C40 has a hydraulically extendable carrier for presentation heights from 6' to 42'.


C40 Pipe Handler

Technical Specifications
Feature Specification
Sub-floor Height Range 6' to 42'
Maximum Tubular Length Range III
Maximum Tubular OD 24"
Maximum Tubular Weight 8,000-10,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 60,000 lbs
Length 62' 4"
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 44 seconds

Design Features
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically extendable carrier
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode
Safety Features
  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors
Optional Features
  • Cold climate upgrade, rated for -40°C

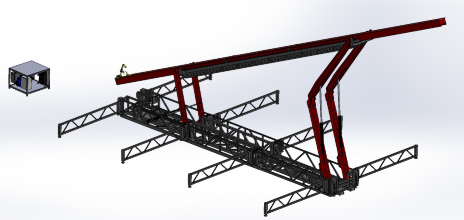

C60

The C60 hydraulic catwalk is designed to be a versatile height catwalk.
The C60 offers wireless remote controls and electric driven hydraulic power unit.
The C60 has a hydraulically extendable carrier for presentation heights from 6' to 26'.
Pair the C60 with our Horizontal Offline Stand Builder, the SB100, for the ultimate Doubles system.


C60 Pipe Handler

Technical Specifications
Feature Specification
Sub-floor Height Range 6' to 26'
Maximum Tubular Length 64'
Maximum Tubular OD 24"
Maximum Tubular Weight 10,000 lbs
Maximum Pipe Rack Load 30,000 lbs (per pair)
Length 66' 4"
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 37 seconds

Design Features
  • Standalone self contained operation
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically extendable carrier
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode
Safety Features
  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors

C80

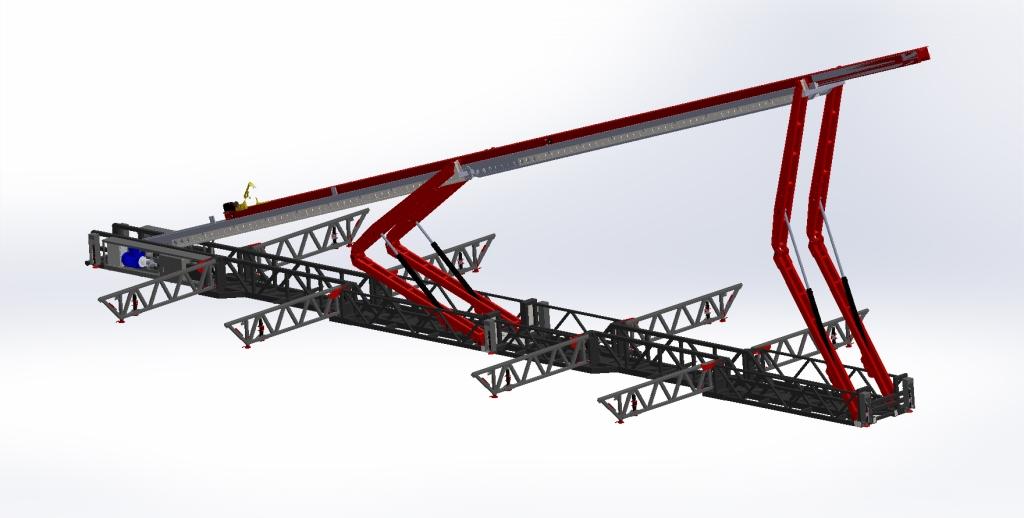

The C80 hydraulic catwalk is designed to be a versatile height catwalk.
The C80 offers wireless remote controls and electric driven hydraulic power unit.
The C80 has a hydraulically extendable carrier for presentation heights from 6' to 42'.
Pair the C80 with our Horizontal Offline Stand Builder, the SB100, for the ultimate Triple system.


C80 Pipe Handler

Technical Specifications
Feature Specification
Sub-floor Height Range 6' to 42'
Maximum Tubular Length 100'
Maximum Tubular OD 24"
Maximum Tubular Weight 8,000-10,000 lbs
Maximum Pipe Rack Load 30,000 lbs (per pair)
Length 116' 4"
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 40 seconds

Design Features
  • Standalone self contained operation
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically extendable carrier
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode
Safety Features
  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors

Copyright © North Rig 2024
